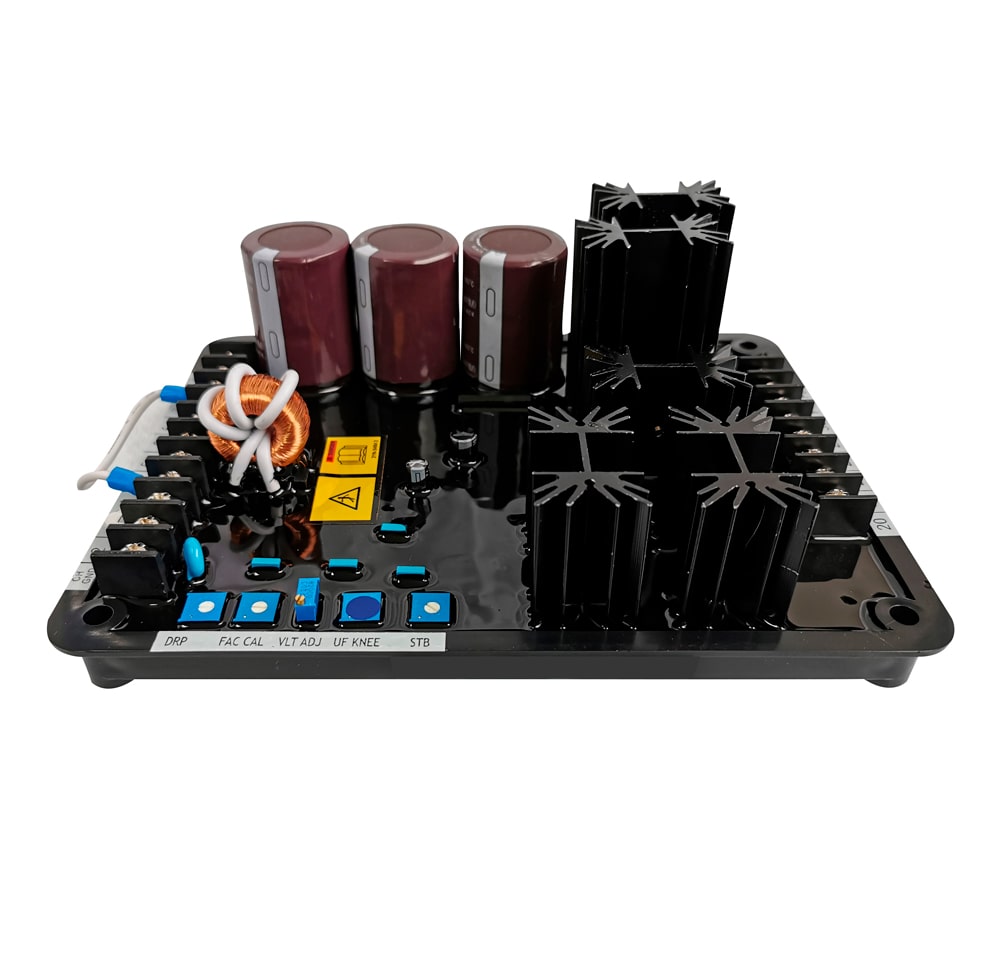

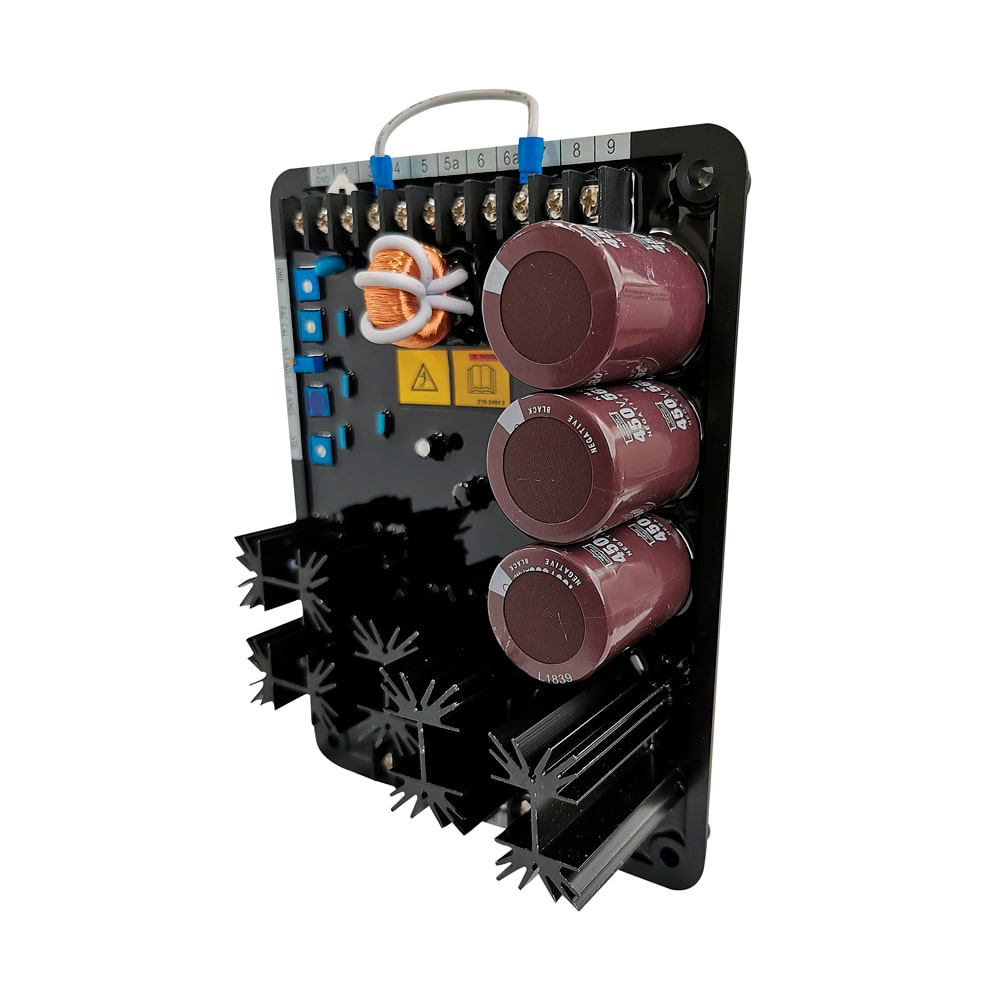

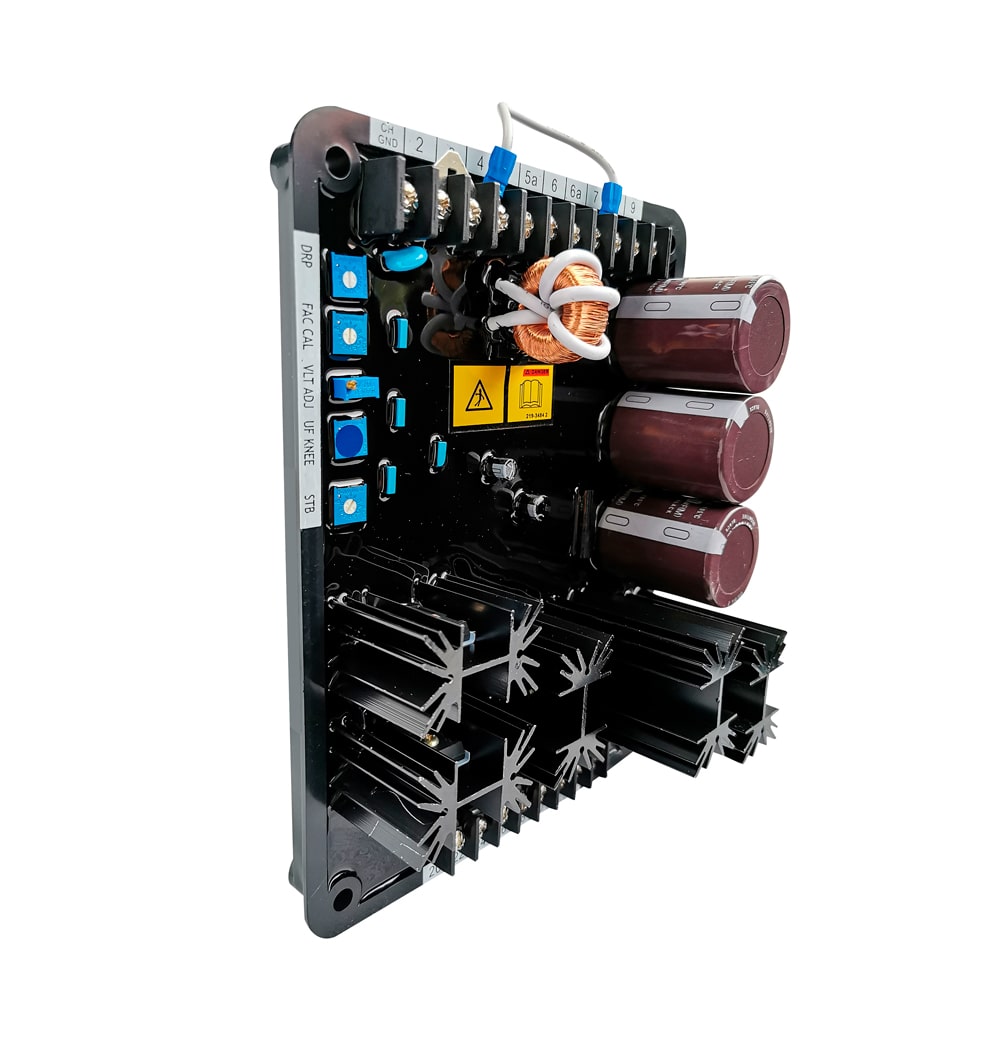

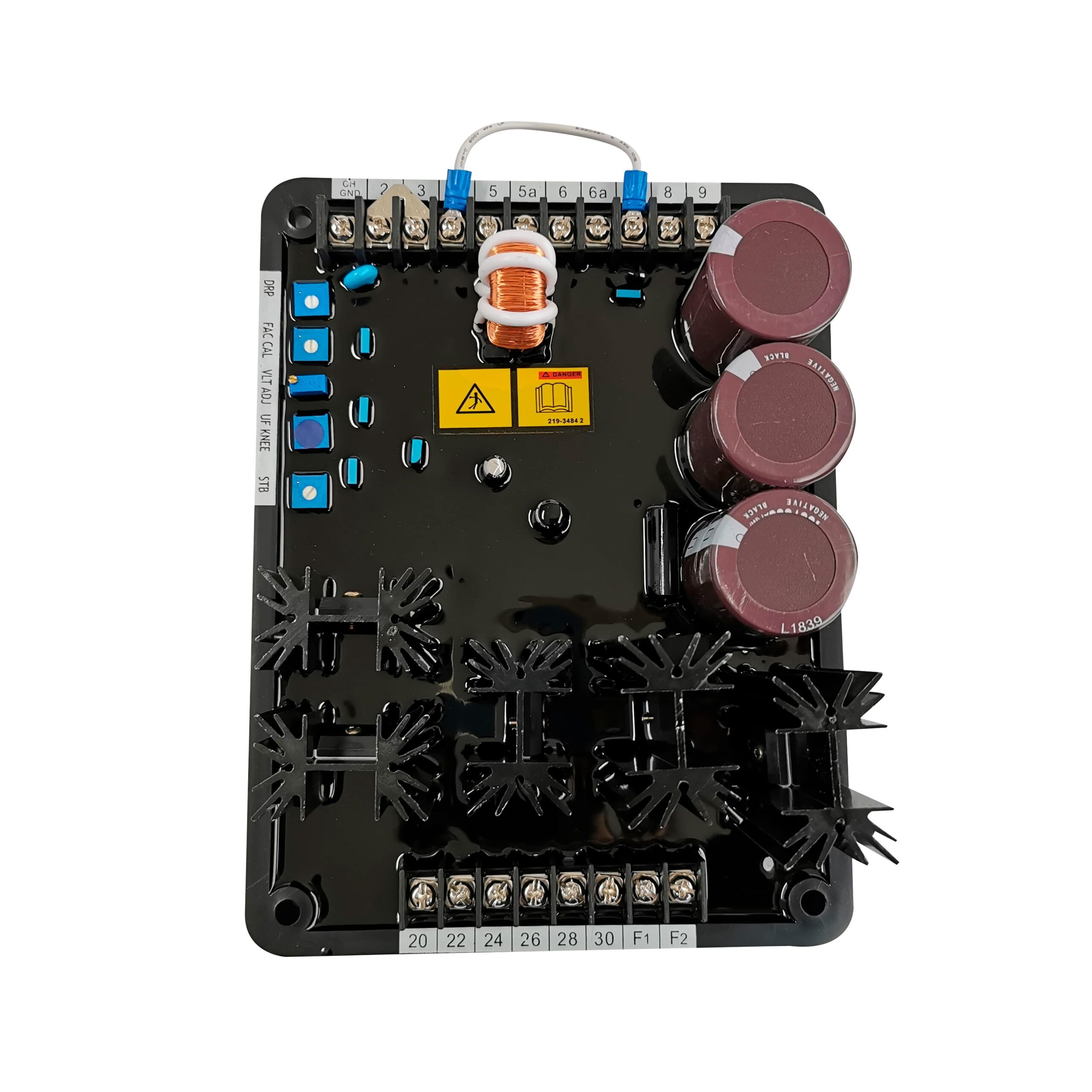

VR6 AVR – Generic Replacement

VR6 AVR – Automatic Voltage Regulator – 1 Year Warranty

• VR6 Automatic Voltage Regulator For use with Self-excited (SE) and Permanent Magnet Excited (PM) generators.
• Regulation better than ± 1.0% V/Hz and 2 V/Hz frequency compensation Over excitation shutdown Solid state voltage buildup Three phase or single phase sensing-standard. Compact package size
• Adjustable Knee frequency (45Hz to 65 Hz) Regulation: Less than ±1% no load to full load Regulation drift: Less than ±½% steady state
• Temperature drift: Less than ±1% for any 40°C change over the operating temperature range. Regulator response: Less than 4 milliseconds Regulator sensing: Three phase or single phase available on SE and PM generators.
• Voltage adjust range: -25% to 10% of nominal Regulator build-up voltage: Regulator will build up with the generator output voltage as low as 6 VAC when used with SE generator. No minimum requirement when used with PM generators.
• Regulator start-up voltage: Voltage overshoot at full throttle engine starting will not exceed 5% of rated value.
• Frequency compensation: Voltage is linearly proportional to frequency for 8 Volts/Hz or 16 Volts/Hz below knee frequency. Knee frequency is adjustable from 45 Hz to 65 Hz. This provides matched engine/generator performance for improved block load performance.
• Reactive droop adjustment: Adjustable from 0% to 10% at rated input current (1A or 5A)
