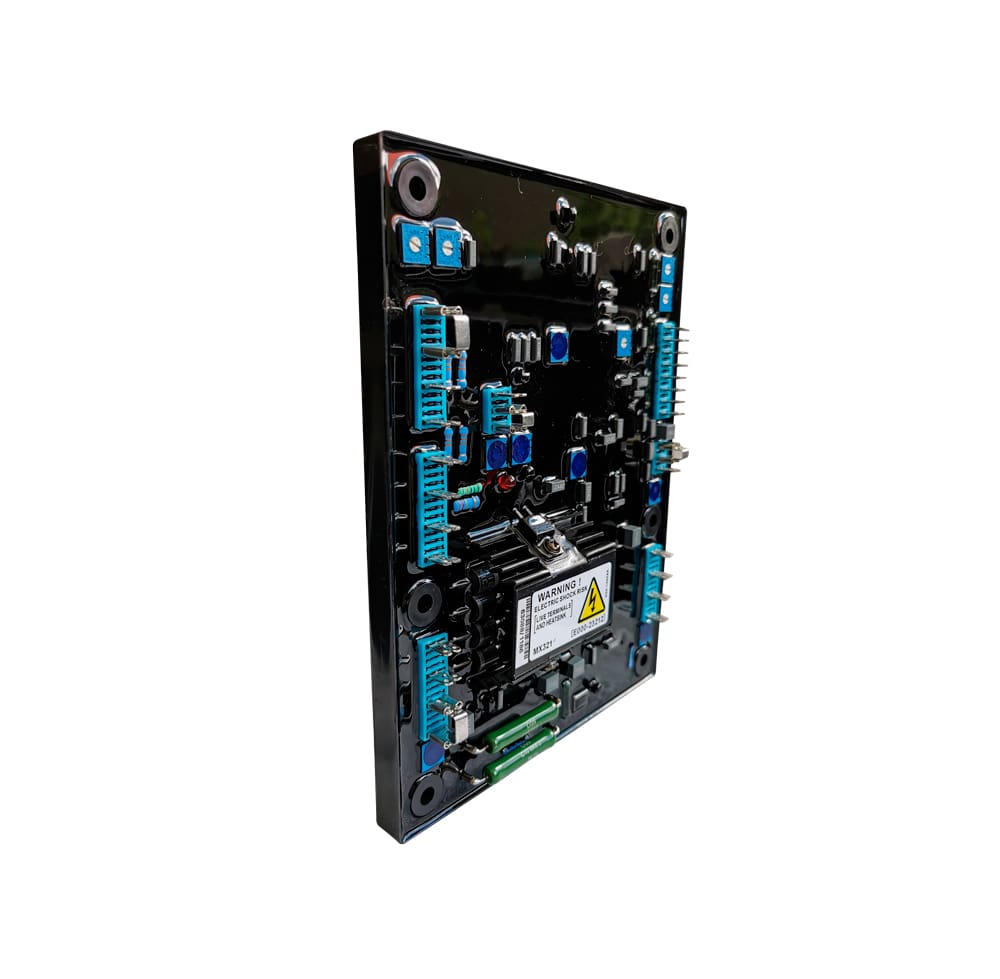

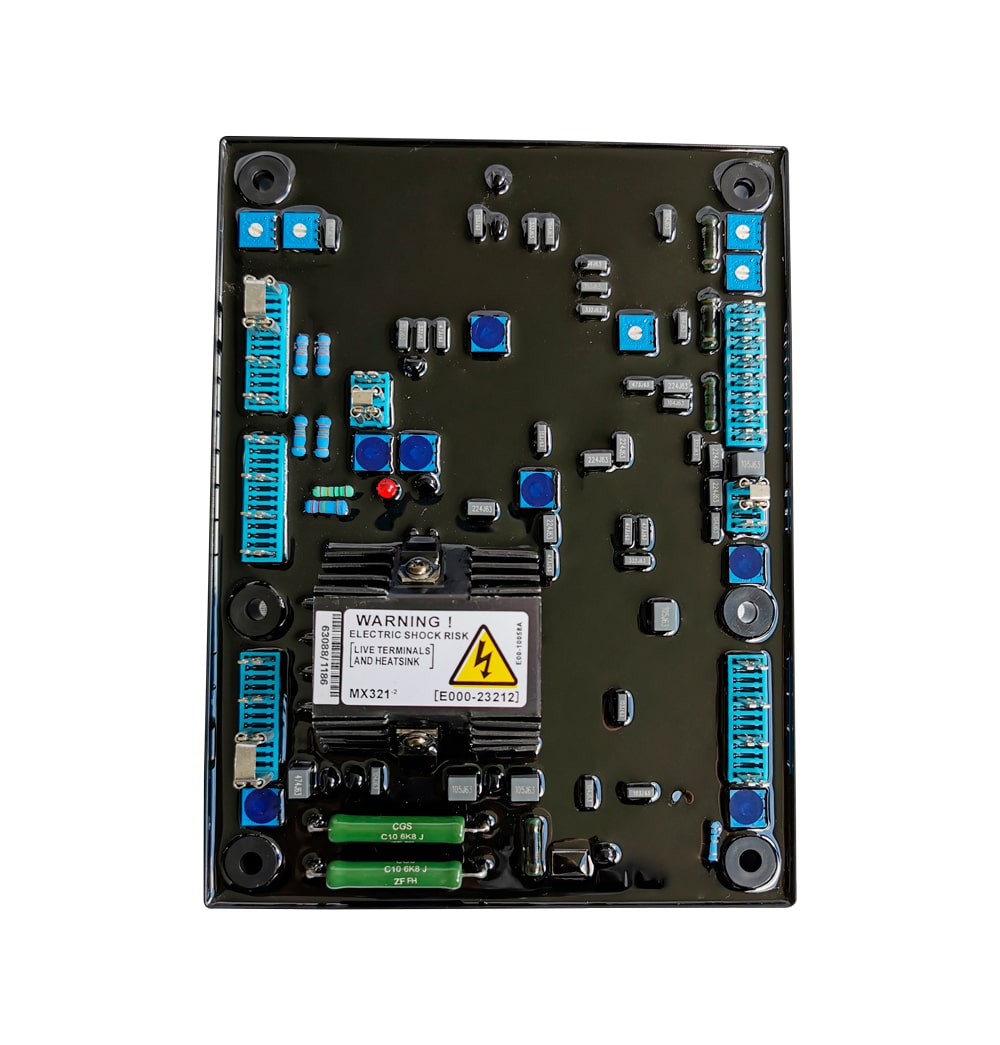

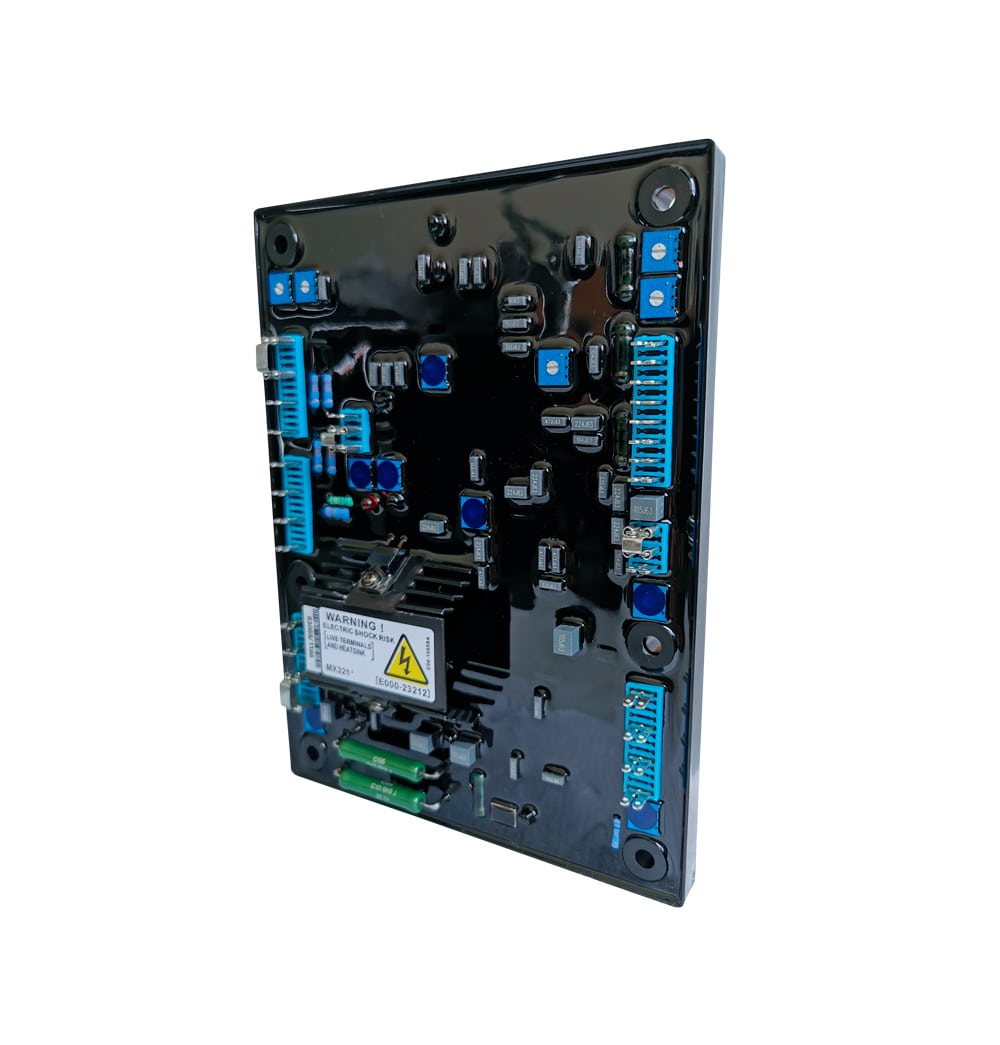

MX321 AVR – Generic Replacement

$99.00

Three phase sensed Automatic Voltage Regulator and forms part of the excitation system for a brush-less generator.
Input: Voltage 170-250 V ac max.
Frequency: 50-60 Hz nominal.
Phase: 3A/phase.
Wire 2.
Output: max 90 V dc at 207 V ac input.
Current: Continuous 4 A dc.
Transient: 6 A for 10 seconds.
Field Resistance: 15 Ω minimum
REGULATION: +/- 1%
THERMAL DRIFT: 1% for 40°C change in AVR ambient.
Vibration 3.3G@100~2kHz
Operating Temperature -40°C to + 70°C
Relative Humidity 95%.
Storage Temperature -55°C + 80°C

SKU: mx321 Category: AVR Tag: AVR Brand: Energy Flow

Product Description

Three phase sensed Automatic Voltage Regulator and forms part of the excitation system for a brush-less generator.
Input: Voltage 170-250 V ac max.
Frequency: 50-60 Hz nominal.
Phase: 3A/phase.
Wire 2.
Output: max 90 V dc at 207 V ac input.
Current: Continuous 4 A dc.
Transient: 6 A for 10 seconds.
Field Resistance: 15 Ω minimum
REGULATION: +/- 1%
THERMAL DRIFT: 1% for 40°C change in AVR ambient.
Vibration 3.3G@100~2kHz
Operating Temperature -40°C to + 70°C
Relative Humidity 95%.
Storage Temperature -55°C + 80°C
