AS440 AVR – Generic Replacement

$33.00

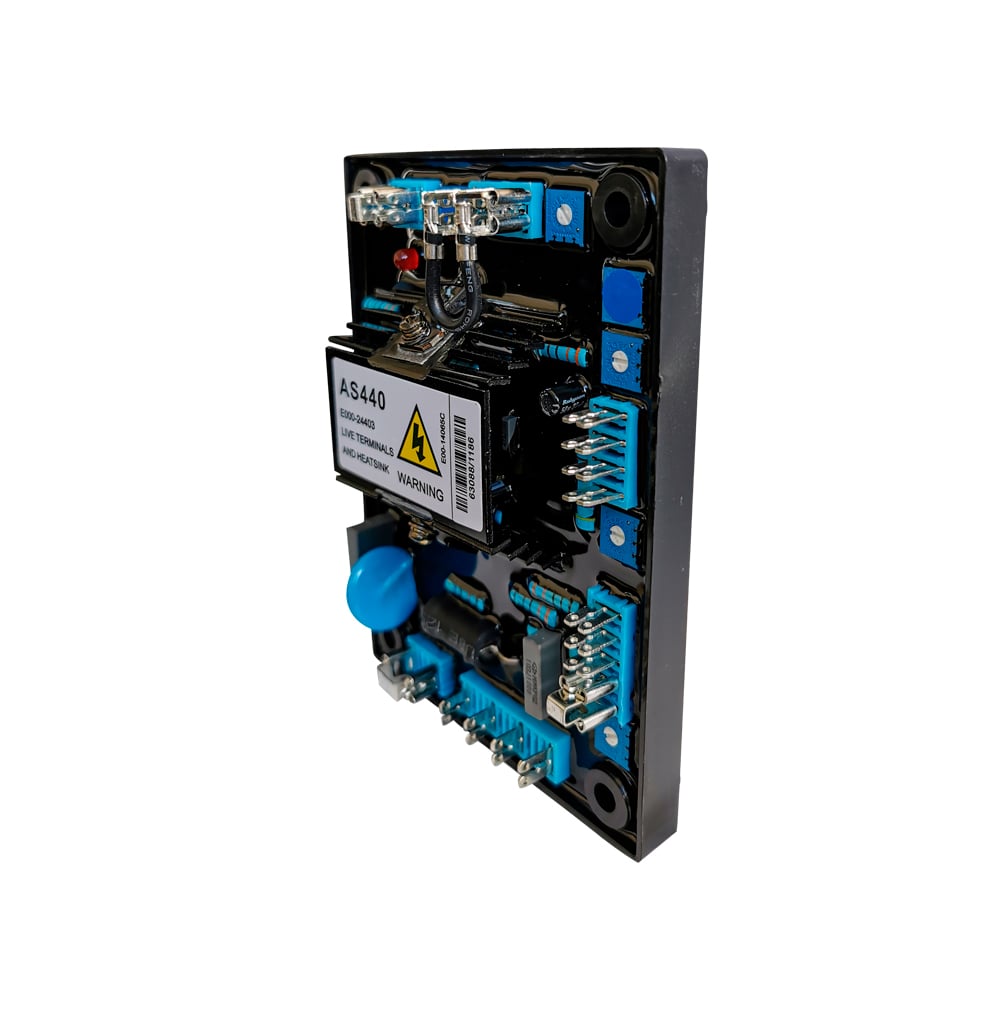

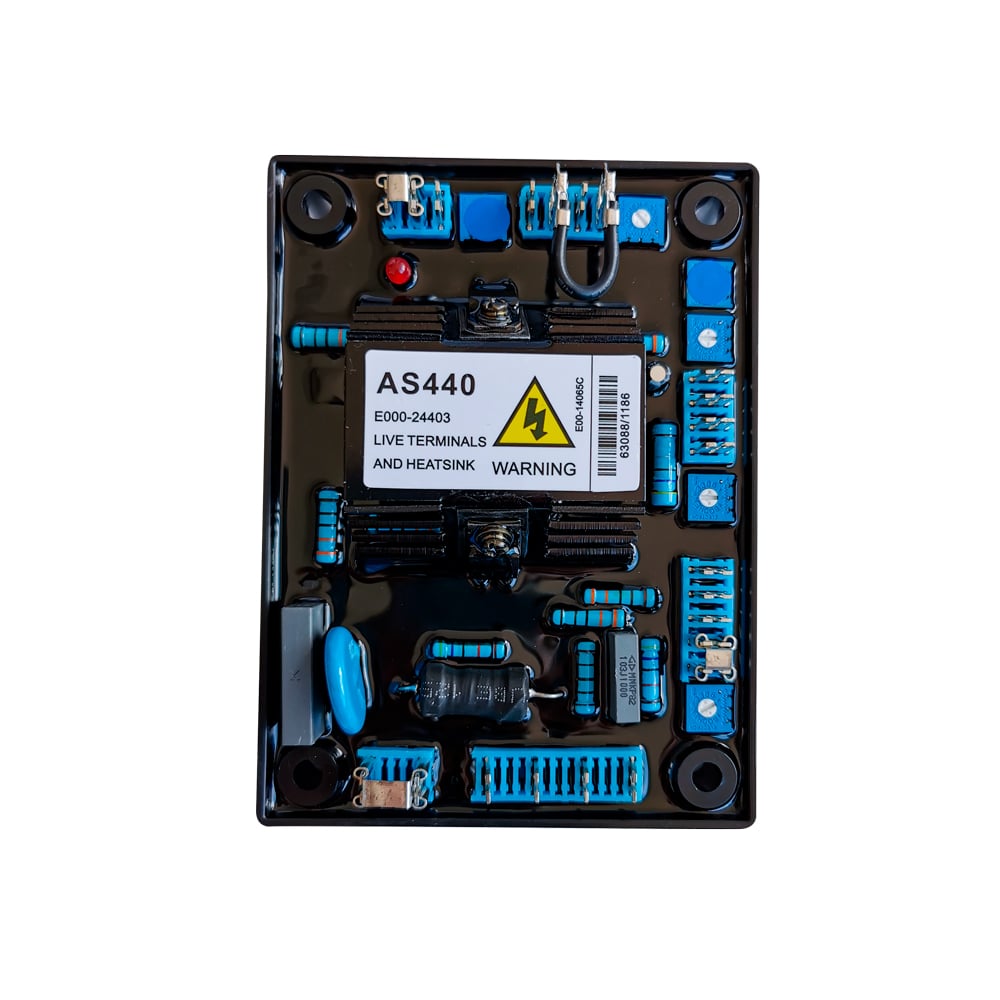

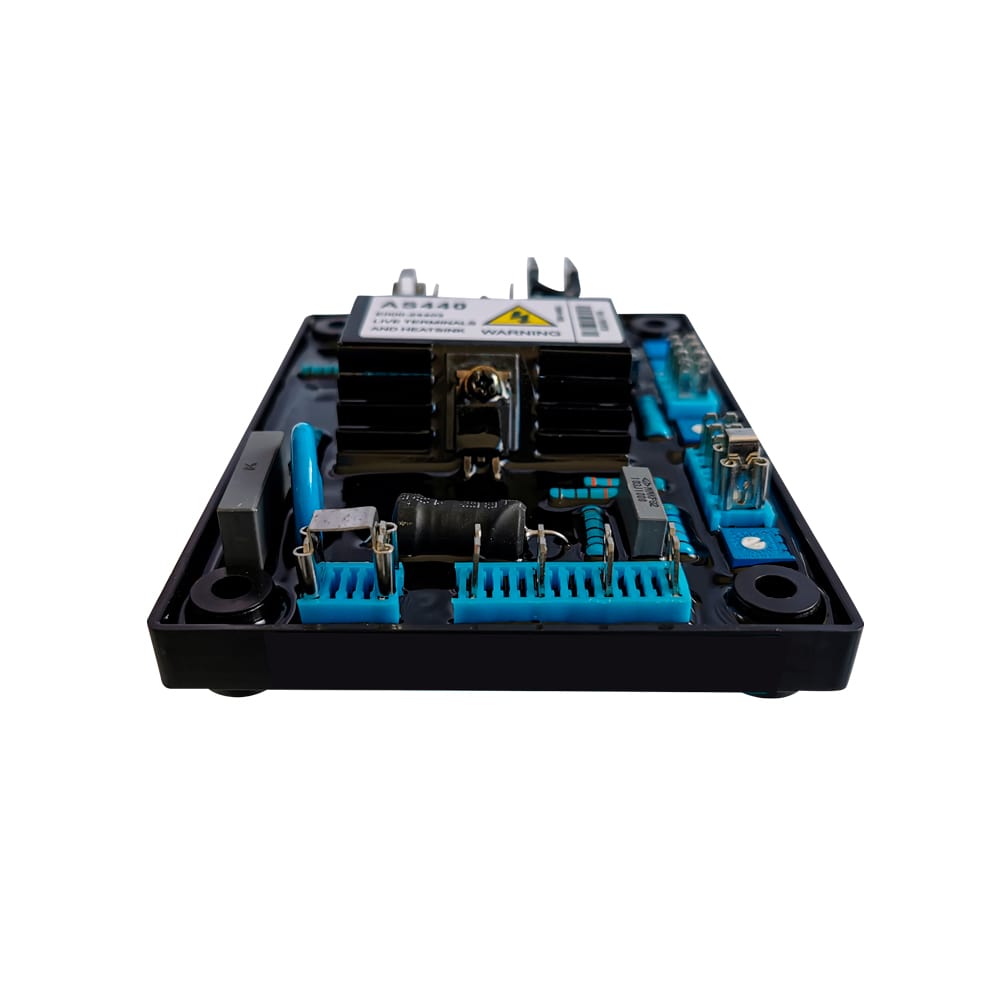

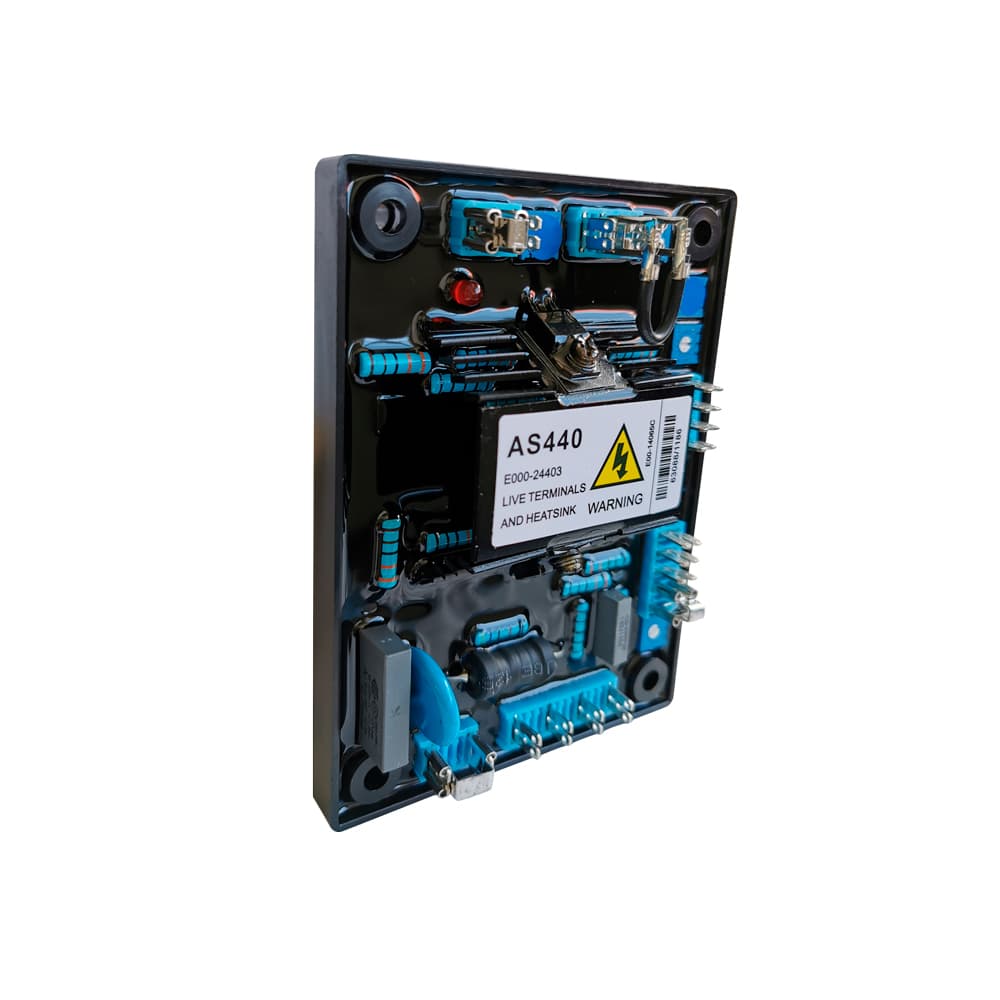

AS440 – Automatic Voltage Regulator is a half-wave phase-controlled thyristor AVR used in brushless generators. It utilizes Surface Mount Technology (SMT) for compact design and efficient performance.
Input Voltage: 100-264 V ac 1 phase Frequency: 50-60 Hz nominal
Resistance: 15 ohms min Regulation: +/- 1.0%
Output Voltage: 82 V d.c. @ 200 V a.c. Current: continuous 4A. Transient 7.5A for 10 secs.
Transient: Transient 7.5A for 10 secs. THERMAL DRIFT: 0.03% per deg. C change in AVR ambient. Vibration 3.3G@100~2kHz. Operating Temperature -40 to +70C.
Relative Humidity 95% Storage Temperature -55°C + 80°C.

SKU: as440 Category: AVR Tag: AVR Brand: Energy Flow

Product Description

AS440 – Automatic Voltage Regulator is a half-wave phase-controlled thyristor AVR used in brushless generators. It utilizes Surface Mount Technology (SMT) for compact design and efficient performance.
Input Voltage: 100-264 V ac 1 phase Frequency: 50-60 Hz nominal
Resistance: 15 ohms min Regulation: +/- 1.0%
Output Voltage: 82 V d.c. @ 200 V a.c. Current: continuous 4A. Transient 7.5A for 10 secs.
Transient: Transient 7.5A for 10 secs. THERMAL DRIFT: 0.03% per deg. C change in AVR ambient. Vibration 3.3G@100~2kHz. Operating Temperature -40 to +70C.
Relative Humidity 95% Storage Temperature -55°C + 80°C.
